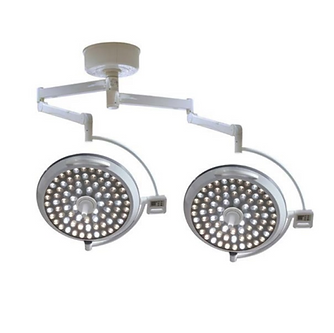

The system combines two identical LED light heads (700 mm dome diameter each, 80 LEDs per head) on a shared ceiling mount with balance and articulated arms, each fitted with a 4.3" LCD touchscreen. Light intensity is continuously adjustable, color temperature is adjustable between 3,800 and 5,500 K, with a color rendering index of Ra ≥ 96 and R9 ≥ 98. An endoscopy mode with 8 white LEDs is also available. The system can be optionally expanded with a Sony camera built into the light head, offering 20x optical and 12x digital zoom (1/3" CMOS sensor, full-HD 1920×1080p, frame rates up to 50/59.94 Hz), together with a medical-grade TFT monitor (22" standard, 27" optional) mounted on a third support arm — this exact configuration is the complete system described here. The monitor provides numerous video inputs and outputs (DVI-I, DVI-D, S-video, HD-SDI, VGA, YPbPr, RGBS, RS232) and a picture-in-picture (PIP) mode, which is particularly useful for endoscopic procedures. The camera streams a live full-HD image of the surgical field to the monitor, allowing the surgical team, assisting staff, or external observers to follow the procedure in real time. Installation, maintenance, and any modification must be carried out exclusively by personnel authorized by Medcure Swiss AG; the light carries a 1-year warranty on the complete system and a 5-year safety warranty.

Specifications

Light model: DDC E700/700 (two 700 mm domes)
Central illuminance at 1 m: 60,000–180,000 lux (per dome)
Light field diameter: 150–350 mm (per dome)
Color temperature: 3,800–5,500 K
Color rendering index Ra: ≥ 96
Color rendering index R9: ≥ 98
Total irradiance: 364–500 W/m²
Number of LEDs per light head: 80
LED lifespan: approx. 80,000 hours
Endoscopy mode: yes, 8 white LEDs
Light depth L1+L2 at 60%: 750 mm
Light depth L1+L2 at 20%: 1400 mm
Optional light accessories: backup battery (4–6 h), 4.3" LCD touchscreen
Camera image sensor: 1/3" CMOS
Camera resolution: 1920 × 1080p (approx. 2.38 megapixels)
Camera frame rate: 1080i/50 Hz (optional 1080i/59.94 Hz, 720p/50 Hz, 720p/59.94 Hz)
Camera zoom: 20x optical / 12x digital
Camera focal length: 5.1–51 mm
Camera minimum illumination: 25 lx
Camera signal-to-noise ratio: > 50 dB
Camera shutter speed: 1/2 to 1/10,000 s
Camera power supply: control unit 100–240 V, 50/60 Hz / camera 6–12 V DC
Camera protection class: Class I
Monitor: Radiance 22" (27" optional), full-HD 1920×1080p
Monitor outputs: DVI-I, DVI-D, S-video, HD-SDI (BNC), loop-through outputs
Monitor inputs: DVI-I, DVI via fiber optic, VGA, S-video, composite video, YPbPr, RGBS, HD-SDI (x2), RS232
Monitor features: PIP (picture-in-picture) mode, HD-SDI endoscopy interface
Compatibility: designed exclusively for Medcure Swiss surgical lights
Warranty: 1 year on the complete system, 5-year safety warranty
